Product Description

TN3238 Ride-on Toys Dynamic Strength Tester



APPLY TO

1.Dynamic strength test for wheeled ride-on toys and electrically-driven toys.

2.Crash test for baby walkers.

TEST PRINCIPLE

1.Load the toy for 5 min in the most onerous position with the appropriate mass on its standing or sitting surface.Secure the load to the toy in a position corresponding to the normal use of the toy.Drive the toy three times at a steady speed of (2 ±0.2) m/s into a non-resillent with a height of 50 mm.Then check whether the structure and properties of sample are in good condition.

2.Load baby walking frames with standard load,drive them once to impact the wall which plywood with a thickness of 20 mm,then check whether the structure and properties of sample are in good condition.

FEATURES AND BENEFITS

1.PLC program controller,big touch screen display.

2.Unique design of sample fixing method, easy to use, fast.

3. The design is professional and scientific, covers a small area, and it is very convenient to disassemble and install.

4.Body with aluminum,beautiful and generous.

5.The base uses the steel structure, solid and strong, without fixed on the ground, can be used directly .

6.High quality servo motor, speed from zero to maximum in 0.3 s.

7.Servo motor speed double closed loop control, ensure the impact speed steady and accurate, accuracy can reach 0.1 m/s.

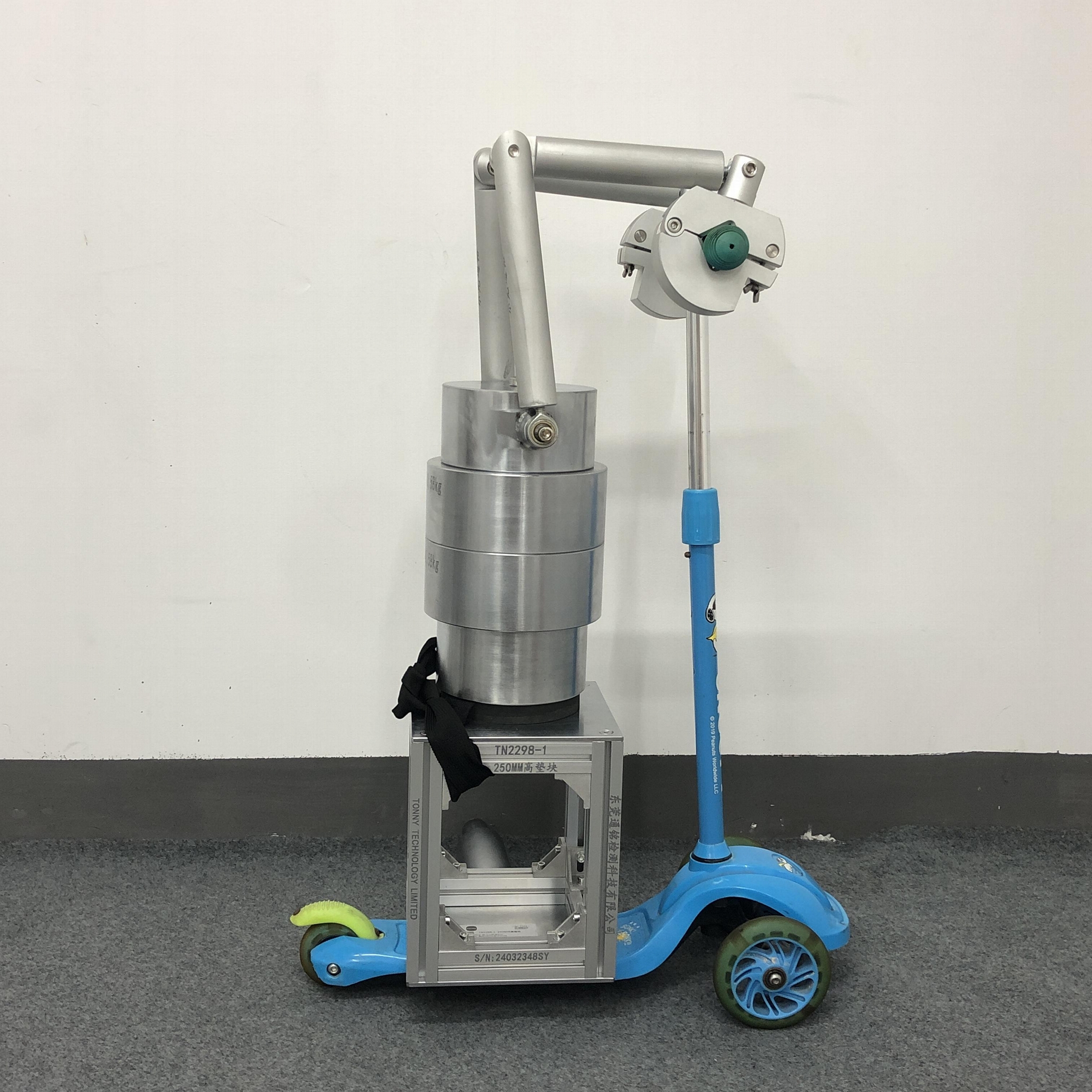

8.Unique fixed load device, ensure that the load will not fall off.

TECHNICAL PARAMETERS

1.Sample number : 1 / time

2.Driven speed : 0~2.5 m/s adjustable ,2 m/s±0.2 m/s(for GB、ISO、EN 71、ASTM)；2.2±0.2 m/s（for electrically-driven toys from EN 71-1)

3.Test channel width : 900 mm

4.Dynamic loads : 25 kg and 50 kg (for GB 6675.2);54.5 kg and 29.5 kg (for EN 71-1,ISO 8124-1,GB 6675.12);12 kg ( for GB 14749,EN 1273,ASTM F977)

5.Barrier specification : non-resilient step with a height of 50±2 mm(for ride-on toys);non-resilient step with a height of 40±2 mm(for walker);plywood with a thickness of 20 mm(for walker)

6.Power supply : AC380V,50/60 Hz,3000W

7.Weight : 600 kg

8.Dimension : 450×153×156 cm

9.Packing size : 200×40×40 cm

STANDARDS(Pls specify before order)

GB 6675.2-2014;ISO 8124-1-2014,EN 71-1-2014,GB 6675.12;GB 14749,EN 1273,ASTM F977;ASTM F963





Our products are all certified by international authority,national metrolog inspection center, won praise from customers all over the world ,including SGS,ITS,BV,TUV Sud,TUV Rheinland,CTI,etc
